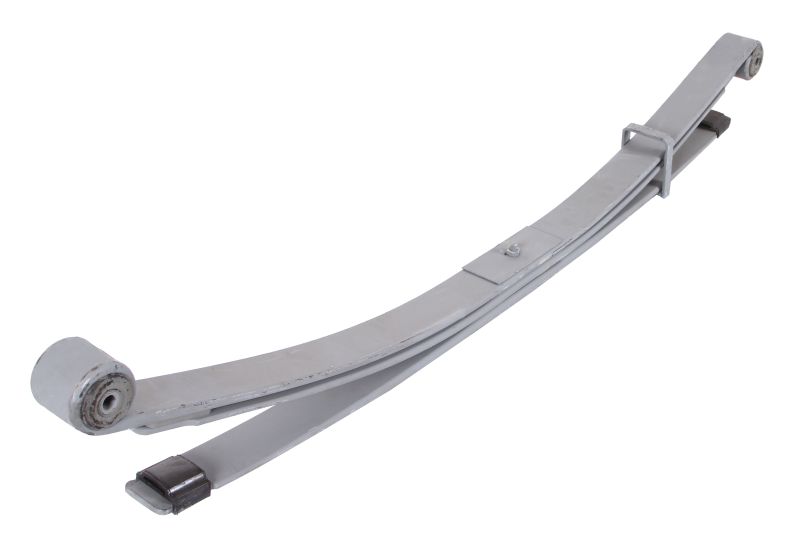

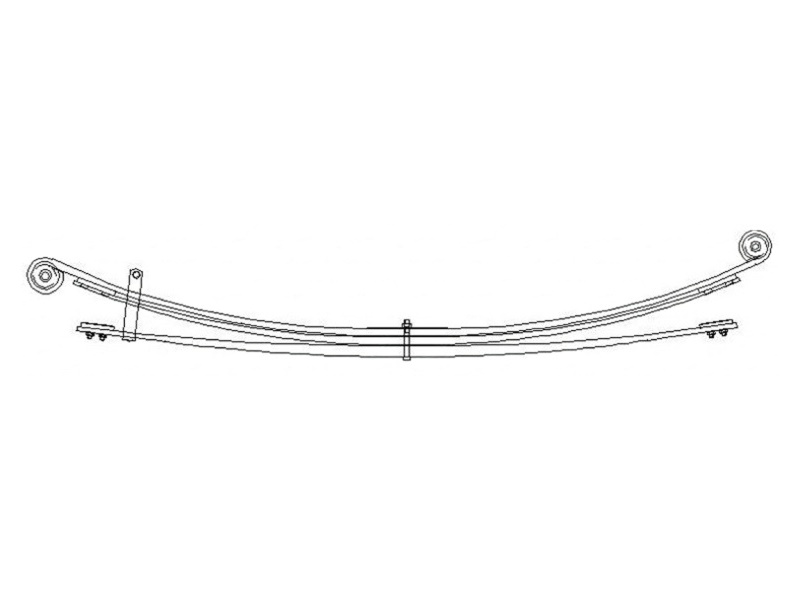

NS26.005.00 Leaf Spring for Renault Master 10-
Description
Ø16,2Ø49,5*78
Ø14,2*Ø45,5*78
NS26.005.00 Leaf Spring for Renault Master 10-
Available
Min. 50 pcs
Lead time 90 days
Placement
Rear
Type
Parabolic
Length (mm)
730-730
Section (mm)
70*1/15+1/16+1/22
Arc height (mm)
153
Weight (kg)
31.1000
Max Load (tons)
Comment
85011600
| Part No | Comment | Type | Weight (kg) | Length (mm) | Section (mm) | Price | |
|---|---|---|---|---|---|---|---|
| 85011601 | Parabolic | 32.8000 | 730-730 | 70*15 |
Available
|
$0.00
|
|
| 85011602 | Parabolic | 8.2000 | 680-680 | 70*16 |
Available
|
$0.00
|
|
| 85011603 | Parabolic | 11.4000 | 660-660 | 70*22 |
Available
|
$0.00
|
|
| 85011665 | Parabolic | 8.0000 | 680-680 | 70*16 |
Available
|
$0.00
|
Comment
85011601
Length (mm)
730-730
Type
Parabolic
Section (mm)
Weight (kg)
32.8000
Comment
85011602
Length (mm)
680-680
Type
Parabolic
Section (mm)
Weight (kg)
8.2000
Comment
85011603
Length (mm)
660-660
Type
Parabolic
Section (mm)
Weight (kg)
11.4000
Comment
85011665
Length (mm)
680-680
Type
Parabolic
Section (mm)
Weight (kg)
8.0000
| Name | Price | |
|---|---|---|
|
Available
|
$0.00
|
|
|
Available
|
$0.00
|
| Number | Brand | Number | Brand |
|---|---|---|---|
| 85011600 | Schomaecker | 026102800 | Celikyay |

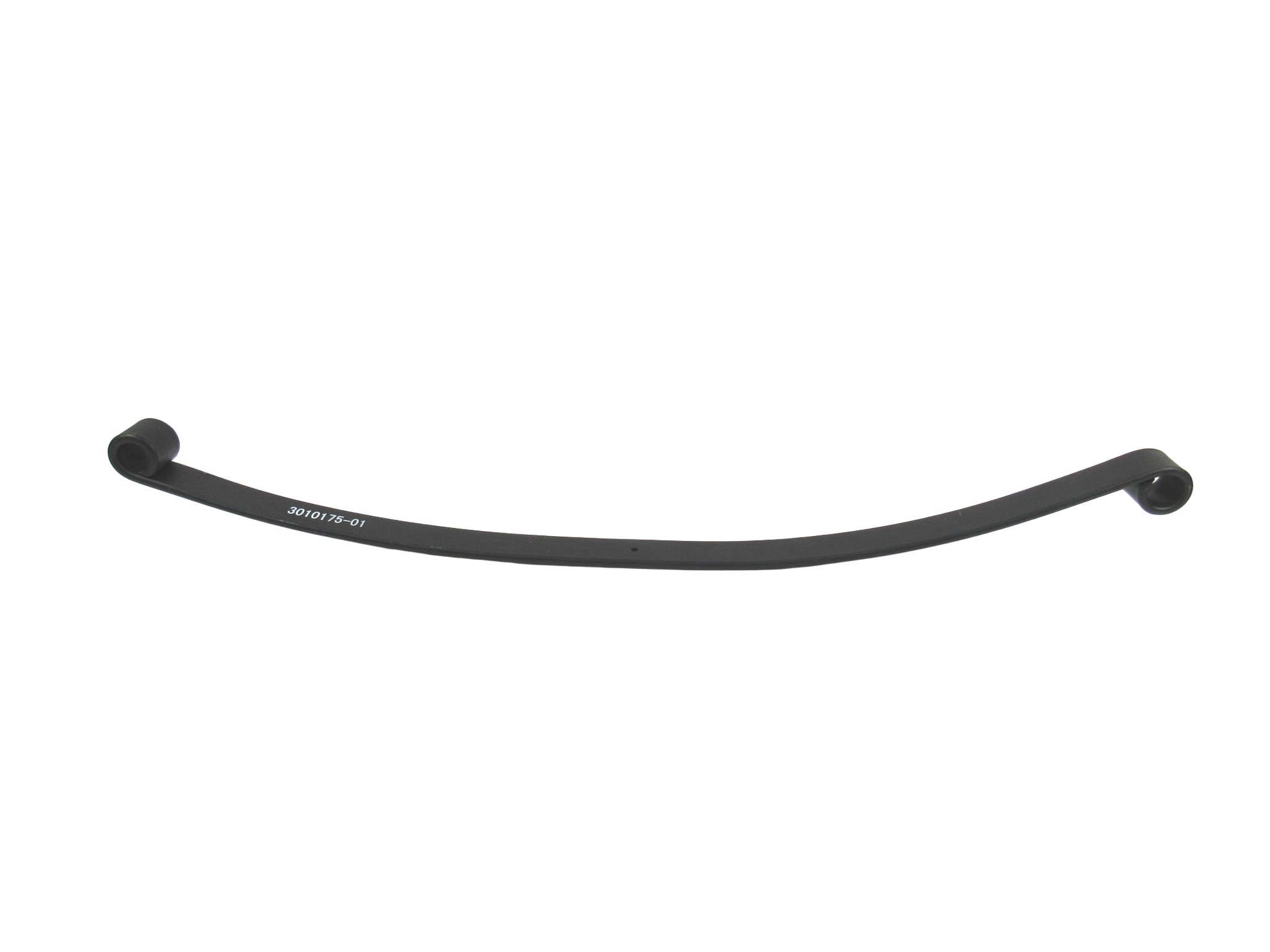

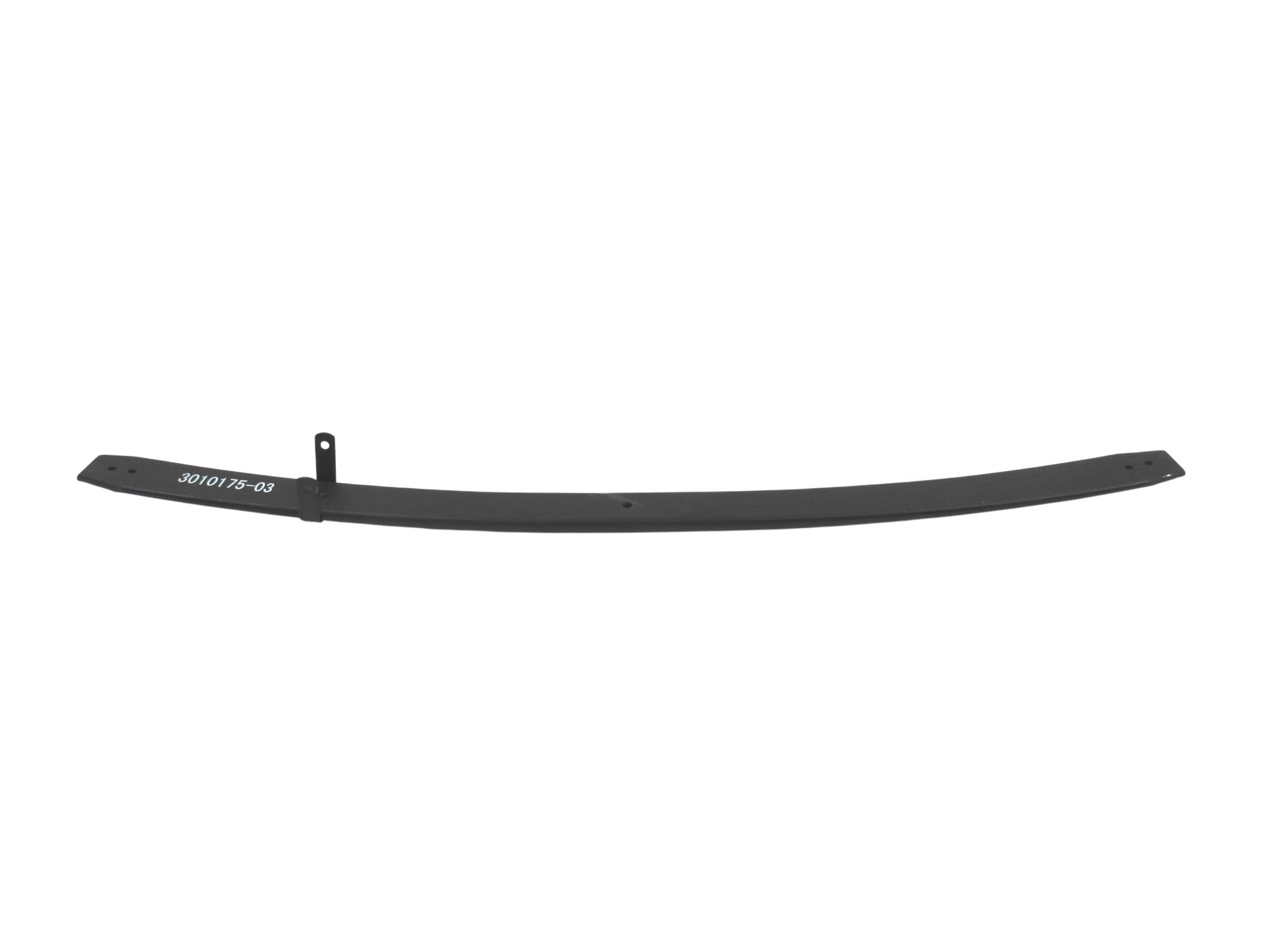

| 3010175-00 | Spring Tech |
| Number | Brand | Number | Brand |
|---|---|---|---|
| 93168814 | Opel | 5502000Q0K | Renault |
| 550200016R | Renault | 4421044 | Opel |
