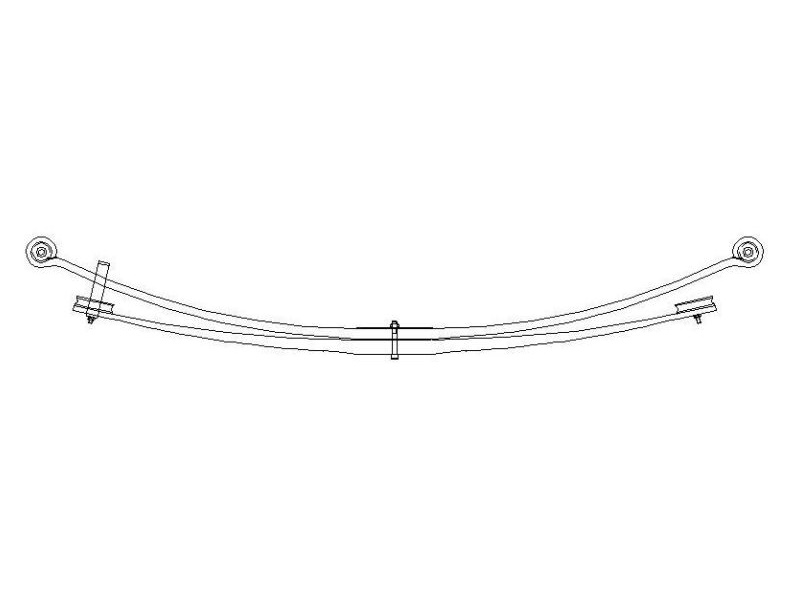

NS26.002.00 Leaf Spring for Renault Mascott

alt
alt
Description

Ø16,3*Ø48*70
Eye dia 46

NS26.002.00 Leaf Spring for Renault Mascott

Accessories
Material
$43.39
Add to cart
On request
Min. 50 pcs
Lead time 90 days
Placement
Rear
Type
Parabolic
Length (mm)
820-820
Section (mm)
60*1/23+1/34
Arc height (mm)
172
Weight (kg)
31.8000
Max Load (tons)
Comment
85008600
Part No Comment Type Weight (kg) Length (mm) Section (mm) Price
NS26.002.01
85008601 Parabolic 16.8000 820-820 60*23
Available
$23.38
NS26.002.02
85008602 Parabolic 15.0000 725-725 60*34
On request
$20.01

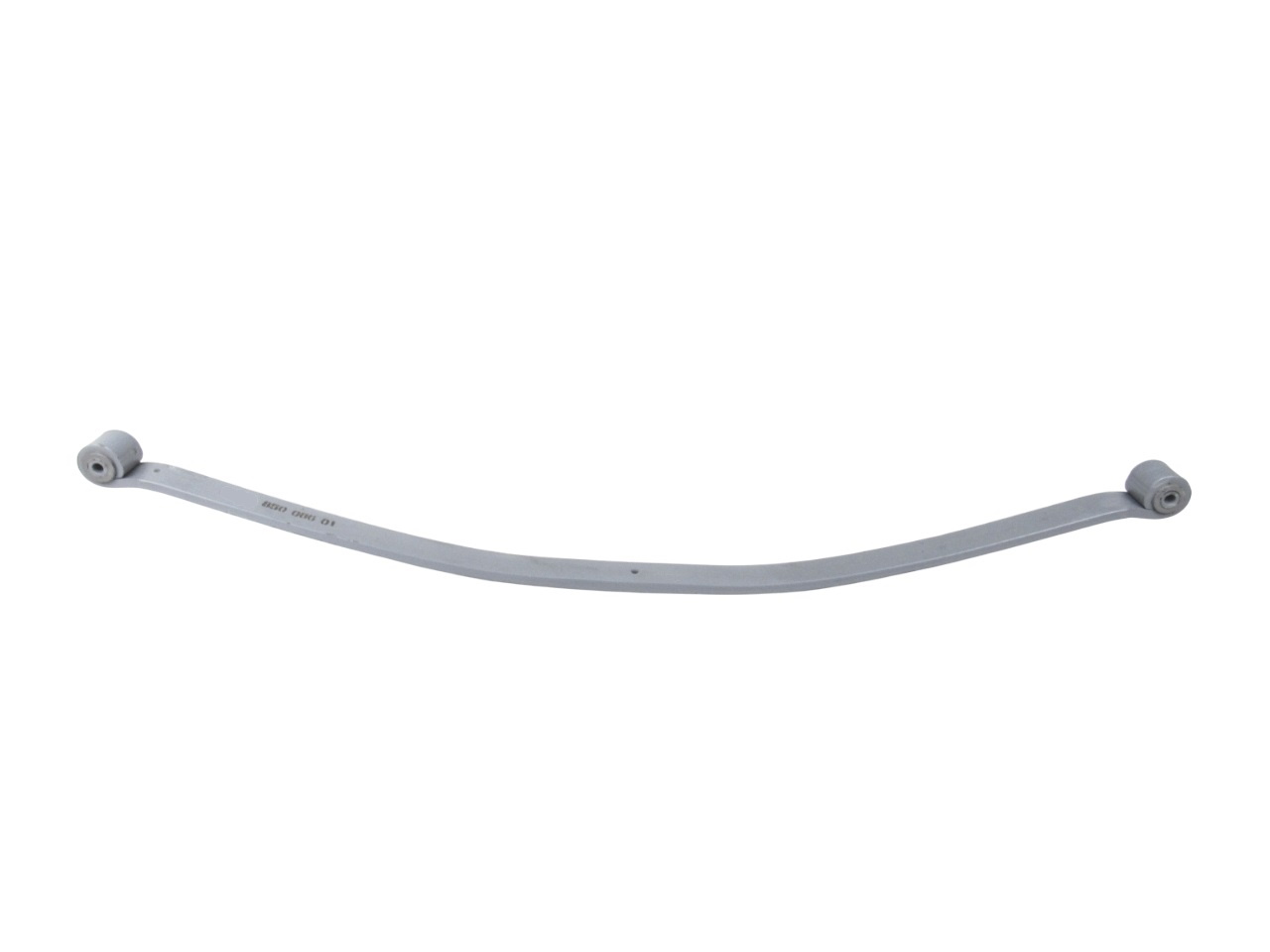

NS26.002.01 Leaf Spring for Renault Mascott
Comment
85008601
Length (mm)
820-820
Type
Parabolic
Section (mm)
60*23
Weight (kg)
16.8000
$23.38
Available
NS26.002.02 Leaf Spring for Renault Mascott
Comment
85008602
Length (mm)
725-725
Type
Parabolic
Section (mm)
60*34
Weight (kg)
15.0000
$20.01
On request
