NS10.011.68 Leaf Spring for Mercedes-Benz Sprinter 412D 904
Description
reinforcement leaf
1999-2006
NS10.011.68 Leaf Spring for Mercedes-Benz Sprinter 412D 904
Available
Min. 50 pcs
Lead time 90 days
Placement
Rear
Type
Parabolic
Length (mm)
780-780
Section (mm)
70*15
Arc height (mm)
155
Weight (kg)
9.5000
Max Load (tons)
Comment
33721068
| Part No | Comment | Type | Weight (kg) | Length (mm) | Section (mm) | Price | |
|---|---|---|---|---|---|---|---|

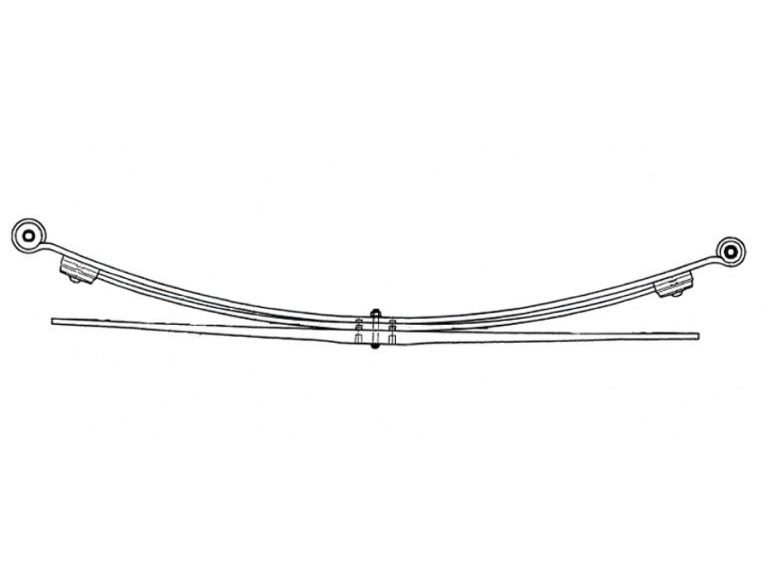

| 33721000 | Parabolic | 34.7000 | 740-753 | 70*1/12+1/15+1/27 |
Available
|
$50.46
|
|

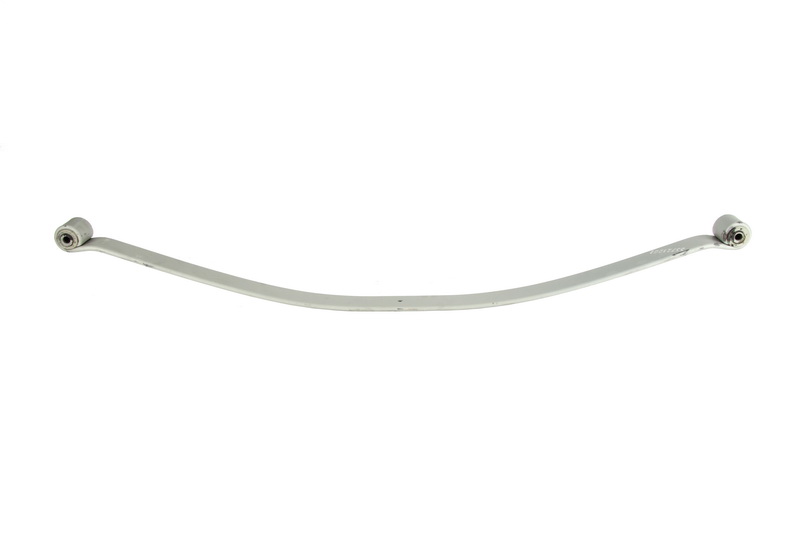

| 33721001 | Conventional | 12.0000 | 740-753 | 70*12 |
Available
|
$16.24
|
|

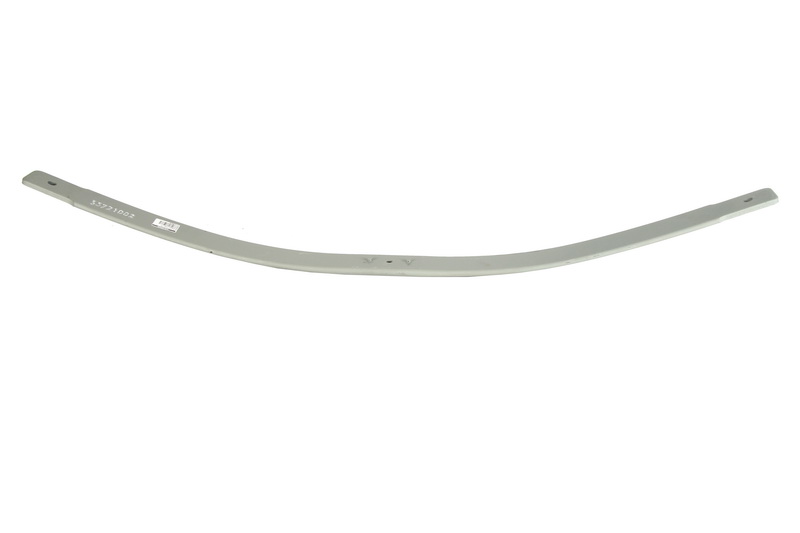

| 33721002 | Parabolic | 8.4000 | 665-665 | 70*15 |
Available
|
$15.23
|
|
| 33721003 | Parabolic | 14.3000 | 665-665 | 70*27 |
Available
|
$19.00
|
Comment
33721000
Length (mm)
740-753
Type
Parabolic
Section (mm)
Weight (kg)
34.7000
Comment
33721001
Length (mm)
740-753
Type
Conventional
Section (mm)
Weight (kg)
12.0000
Comment
33721002
Length (mm)
665-665
Type
Parabolic
Section (mm)
Weight (kg)
8.4000
Comment
33721003
Length (mm)
665-665
Type
Parabolic
Section (mm)
Weight (kg)
14.3000
| Name | Price | |
|---|---|---|
|
Available
|
$1.15
|
|
|
Available
|
$0.89
|
| Number | Brand | Number | Brand |
|---|---|---|---|
| 33721068 | Schomaecker | 024621802 | Celikyay |
| MLS-33721068 | Magnum | 3010058-68 | Spring Tech |
| 3372106819 | TES |
| Number | Brand | Number | Brand |
|---|---|---|---|
| 9043201606 | Mercedes-Benz | 9043201106 | Mercedes-Benz |
| 9043200606 | Mercedes-Benz | 9043200506 | Mercedes-Benz |
