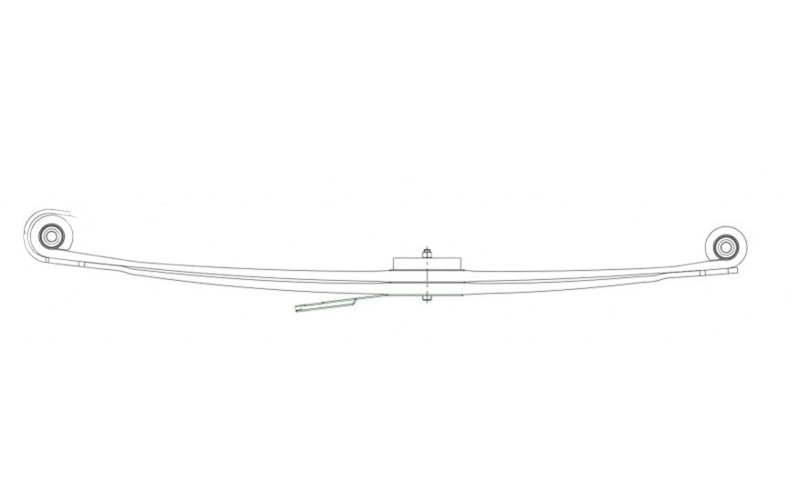

NS10.097.00 Leaf Spring for Mercedes Arocs
Description
Bushes Ø24,2*Ø62,1*104
NS10.097.00 Leaf Spring for Mercedes Arocs
On request
Min. 50 pcs
Lead time 90 days
Placement
Front
Type
Parabolic
Length (mm)
900-715
Section (mm)
90*1/27+2/28
Arc height (mm)
67
Weight (kg)
56.3000
Max Load (tons)
Comment
33892000
| Part No | Comment | Type | Weight (kg) | Length (mm) | Section (mm) | Price | |
|---|---|---|---|---|---|---|---|
| 33892001 | Parabolic | 30.2000 | 900-715 | 90*27 |
On request
|
|
|
| 33892002 | Parabolic | 23.1000 | 1180-740 | 90*28 |
On request
|
|
|
| 33892003 | Conventional | 3.0000 | 80-80 | 90*28 |
On request
|
|
Comment
33892001
Length (mm)
900-715
Type
Parabolic
Section (mm)
Weight (kg)
30.2000
Comment
33892002
Length (mm)
1180-740
Type
Parabolic
Section (mm)
Weight (kg)
23.1000
Comment
33892003
Length (mm)
80-80
Type
Conventional
Section (mm)
Weight (kg)
3.0000
| Name | Price | |
|---|---|---|
|
Available
|
$0.00
|
| Number | Brand | Number | Brand |
|---|---|---|---|
| 33892000 | Schomaecker | 024804800 | Celikyay |
| Number | Brand | Number | Brand |
|---|---|---|---|
| A9603204502 | Mercedes-Benz | 9603204502 | Mercedes-Benz |
