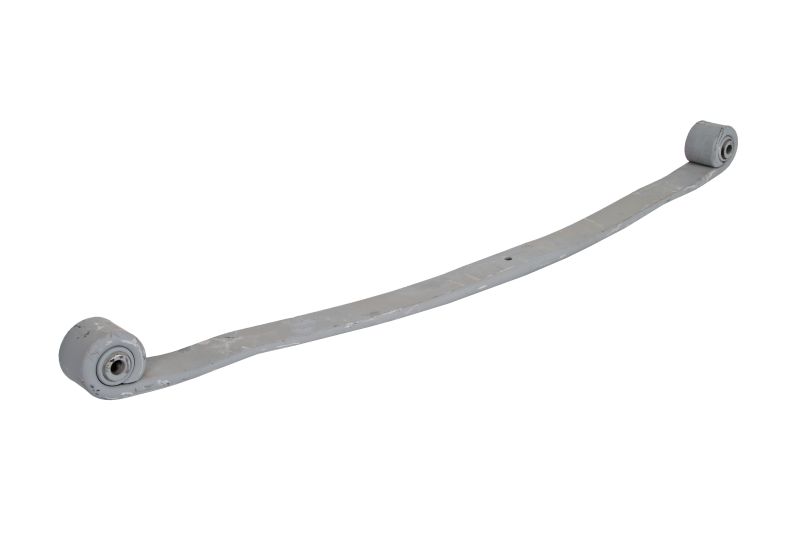

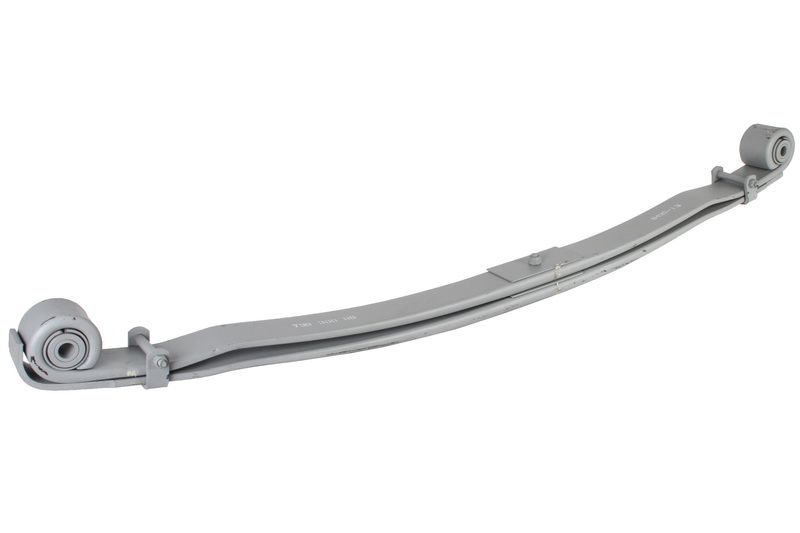

NS13.030.00 Leaf Spring for MAN TGA, TGS
Description
Ø24,2*Ø64/94,7
Ø24,2*Ø65*100
NS13.030.00 Leaf Spring for MAN TGA, TGS
Available
Min. 50 pcs
Lead time 90 days
Placement
Front
Type
Parabolic
Length (mm)
925-735
Section (mm)
90*2/30
Arc height (mm)
108
Weight (kg)
57.8000
Max Load (tons)
Comment
73030000
| Part No | Comment | Type | Weight (kg) | Length (mm) | Section (mm) | Price | |
|---|---|---|---|---|---|---|---|
| 73030001 | Parabolic | 33.8000 | 925-735 | 90*30 |
Available
|
$47.04
|
|
| 73030002 | Parabolic | 23.0000 | 1040-745 | 90*30 |
Available
|
$32.00
|
Comment
73030001
Length (mm)
925-735
Type
Parabolic
Section (mm)
Weight (kg)
33.8000
Comment
73030002
Length (mm)
1040-745
Type
Parabolic
Section (mm)
Weight (kg)
23.0000
| Name | Price | |
|---|---|---|
|
Available
|
$4.89
|
|
|
Available
|
$4.89
|
| Number | Brand | Number | Brand |
|---|---|---|---|
| 73030000 | Schomaecker | F088T407WA75 | Weweler |
| 022333800 | Celikyay | PS700.46.00 | Dikmen |
| 7303000019 | TES |
| Number | Brand | Number | Brand |
|---|---|---|---|
| 81434026311 | MAN | 81434026265 | MAN |
| 81434026264 | MAN | 81434026263 | MAN |
