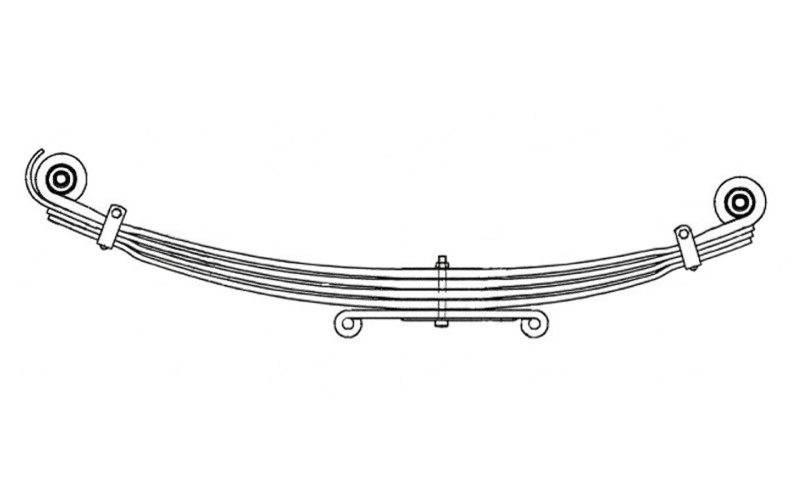

NS13.015.00 Leaf Spring for MAN TGA-S-X
Description
Ø24,4*Ø70*95
NS13.015.00 Leaf Spring for MAN TGA-S-X
Available
Min. 50 pcs
Lead time 90 days
Placement
Front
Type
Parabolic
Length (mm)
900-700
Section (mm)
90*1/25+3/21+1/18
Arc height (mm)
175
Weight (kg)
89.4000
Max Load (tons)
Comment
72906000
| Part No | Comment | Type | Weight (kg) | Length (mm) | Section (mm) | Price | |
|---|---|---|---|---|---|---|---|
| 72906001 | Parabolic | 28.7100 | 900-700 | 90*25 |
Available
|
$39.95
|
|
| 72906002 | Parabolic | 17.3200 | 1065-715 | 90*21 |
Available
|
$23.10
|
|
| 72906003 | Parabolic | 16.0000 | 915-715 | 90*21 |
Available
|
$21.34
|
|
| 72906004 | Parabolic | 16.0000 | 915-715 | 90*21 |
Available
|
$21.34
|
|
| 72906005 | Parabolic | 7.0000 | 210-210 | 90*18 |
Available
|
$10.14
|
Comment
72906001
Length (mm)
900-700
Type
Parabolic
Section (mm)
Weight (kg)
28.7100
Comment
72906002
Length (mm)
1065-715
Type
Parabolic
Section (mm)
Weight (kg)
17.3200
Comment
72906003
Length (mm)
915-715
Type
Parabolic
Section (mm)
Weight (kg)
16.0000
Comment
72906004
Length (mm)
915-715
Type
Parabolic
Section (mm)
Weight (kg)
16.0000
Comment
72906005
Length (mm)
210-210
Type
Parabolic
Section (mm)
Weight (kg)
7.0000
| Name | Price | |
|---|---|---|
|
Available
|
$0.00
|
| Number | Brand | Number | Brand |
|---|---|---|---|
| 72906000 | Schomaecker | F088T357WA75 | Weweler |
| 022175800 | Celikyay | PS700.29.00 | Dikmen |
| 7290600019 | TES |
| Number | Brand | Number | Brand |
|---|---|---|---|
| 81434026179 | MAN | 81434026177 | MAN |
| 81434026175 | MAN |
