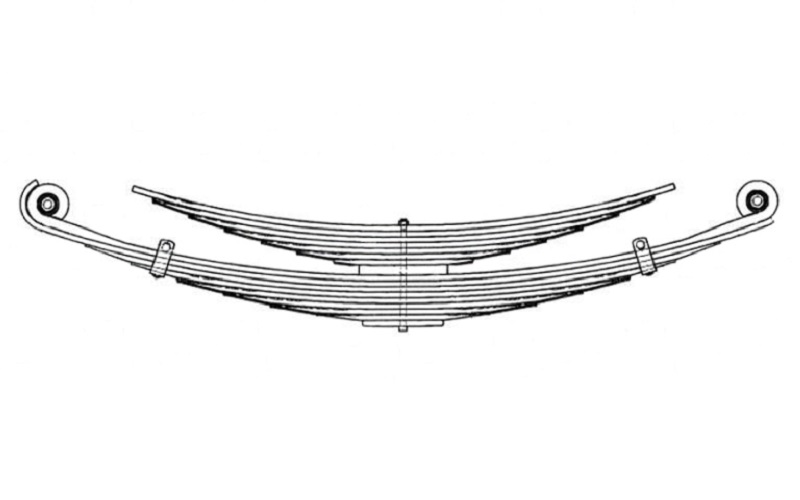

NS13.072.00 Leaf Spring for MAN M2000
Description
Ø20,2*Ø57,5*84
NS13.072.00 Leaf Spring for MAN M2000
Available
Min. 50 pcs
Lead time 90 days
Placement
Rear
Type
Parabolic
Length (mm)
900-900
Section (mm)
80*1/23+7/14+1/15+7/14+1/23
Arc height (mm)
190/110
Weight (kg)
145.0000
Max Load (tons)
Comment
72869000
| Part No | Comment | Type | Weight (kg) | Length (mm) | Section (mm) | Price | |
|---|---|---|---|---|---|---|---|
| 72869001 | Parabolic | 19.7000 | 900-900 | 80*23 |
Available
|
$27.42
|
|
| 72869002 | Conventional | 17.2000 | 1170-910 | 80*14 |
Available
|
$21.95
|
|
| 72869003 | Conventional | 13.1000 | 790-790 | 80*14 |
Available
|
$16.12
|
|
| 72869004 | Conventional | 11.0000 | 675-675 | 80*14 |
Available
|
$14.29
|
|
| 72869005 | Conventional | 9.0000 | 560-560 | 80*14 |
Available
|
$12.73
|
|
| 72869006 | Conventional | 7.1000 | 445-445 | 80*14 |
Available
|
$10.04
|
|
| 72869007 | Conventional | 5.1000 | 330-330 | 80*14 |
Available
|
$7.21
|
|
| 72869008 | Conventional | 3.1000 | 215-215 | 80*14 |
Available
|
$4.38
|
|
| 72869009 | Conventional | 1.7000 | 95-95 | 80*15 |
Available
|
$2.19
|
|
| 72869030 | Conventional | 55.9000 | 695-695 | 80*7/14+1/23 |
Available
|
$71.36
|
|
| 72869031 | Conventional | 12.1000 | 695-695 | 80*14 |
Available
|
$14.89
|
|
| 72869032 | Conventional | 10.4000 | 625-625 | 80*14 |
Available
|
$13.51
|
|
| 72869033 | Conventional | 9.0000 | 535-535 | 80*14 |
Available
|
$12.73
|
|
| 72869034 | Conventional | 7.7000 | 445-445 | 80*14 |
Available
|
$10.89
|
|
| 72869035 | Conventional | 5.9000 | 355-355 | 80*14 |
Available
|
$8.35
|
|
| 72869036 | Conventional | 4.4000 | 265-265 | 80*14 |
Available
|
$6.22
|
|
| 72869037 | Conventional | 3.2000 | 175-175 | 80*14 |
Available
|
$4.53
|
|
| 72869038 | Conventional | 3.2000 | 110-110 | 80*23 |
Available
|
$4.53
|
Comment
72869001
Length (mm)
900-900
Type
Parabolic
Section (mm)
Weight (kg)
19.7000
Comment
72869002
Length (mm)
1170-910
Type
Conventional
Section (mm)
Weight (kg)
17.2000
Comment
72869003
Length (mm)
790-790
Type
Conventional
Section (mm)
Weight (kg)
13.1000
Comment
72869004
Length (mm)
675-675
Type
Conventional
Section (mm)
Weight (kg)
11.0000
Comment
72869005
Length (mm)
560-560
Type
Conventional
Section (mm)
Weight (kg)
9.0000
Comment
72869006
Length (mm)
445-445
Type
Conventional
Section (mm)
Weight (kg)
7.1000
Comment
72869007
Length (mm)
330-330
Type
Conventional
Section (mm)
Weight (kg)
5.1000
Comment
72869008
Length (mm)
215-215
Type
Conventional
Section (mm)
Weight (kg)
3.1000
Comment
72869009
Length (mm)
95-95
Type
Conventional
Section (mm)
Weight (kg)
1.7000
Comment
72869030
Length (mm)
695-695
Type
Conventional
Section (mm)
Weight (kg)
55.9000
Comment
72869031
Length (mm)
695-695
Type
Conventional
Section (mm)
Weight (kg)
12.1000
Comment
72869032
Length (mm)
625-625
Type
Conventional
Section (mm)
Weight (kg)
10.4000
Comment
72869033
Length (mm)
535-535
Type
Conventional
Section (mm)
Weight (kg)
9.0000
Comment
72869034
Length (mm)
445-445
Type
Conventional
Section (mm)
Weight (kg)
7.7000
Comment
72869035
Length (mm)
355-355
Type
Conventional
Section (mm)
Weight (kg)
5.9000
Comment
72869036
Length (mm)
265-265
Type
Conventional
Section (mm)
Weight (kg)
4.4000
Comment
72869037
Length (mm)
175-175
Type
Conventional
Section (mm)
Weight (kg)
3.2000
Comment
72869038
Length (mm)
110-110
Type
Conventional
Section (mm)
Weight (kg)
3.2000
| Name | Price | |
|---|---|---|
|
Available
|
$4.60
|
| Number | Brand | Number | Brand |
|---|---|---|---|
| 72869000 | Schomaecker | A088T254ZA76 | Weweler |
| 022101500 | Celikyay | KS700.34.00 | Dikmen |
| 7286900019 | TES |
| Number | Brand | Number | Brand |
|---|---|---|---|
| 81434026554 | MAN | 81434026544 | MAN |
| 81434026540 | MAN |
