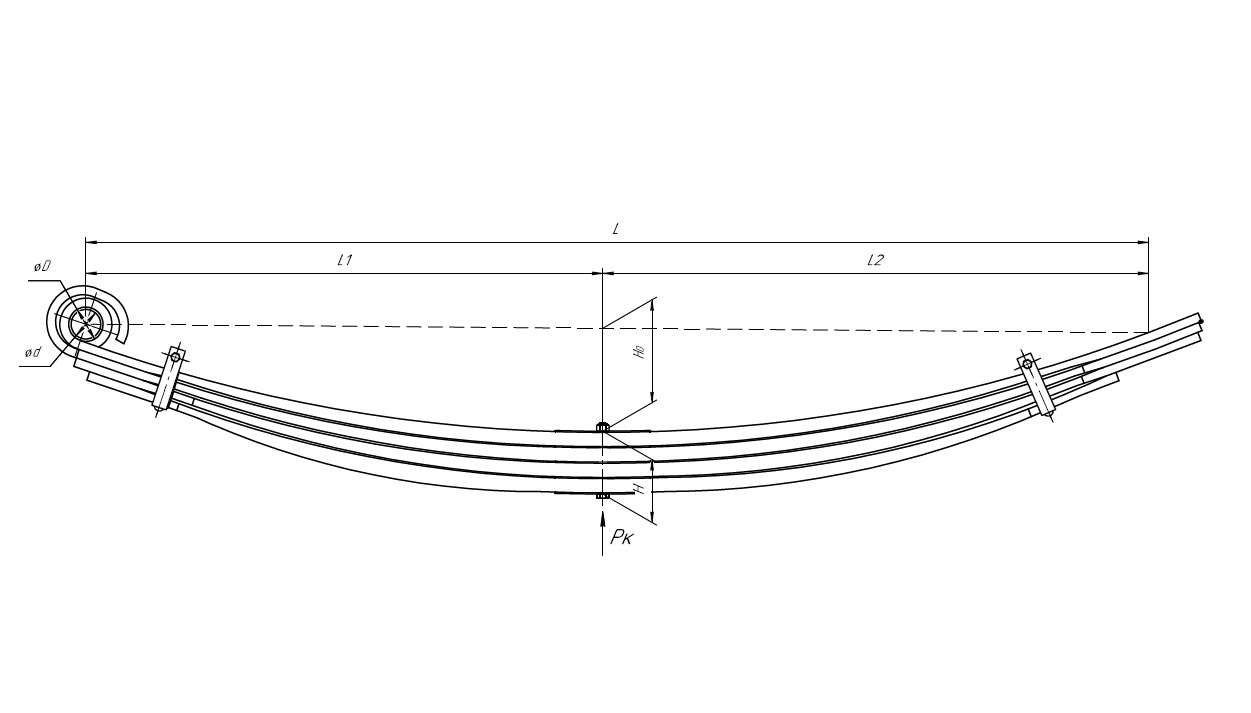

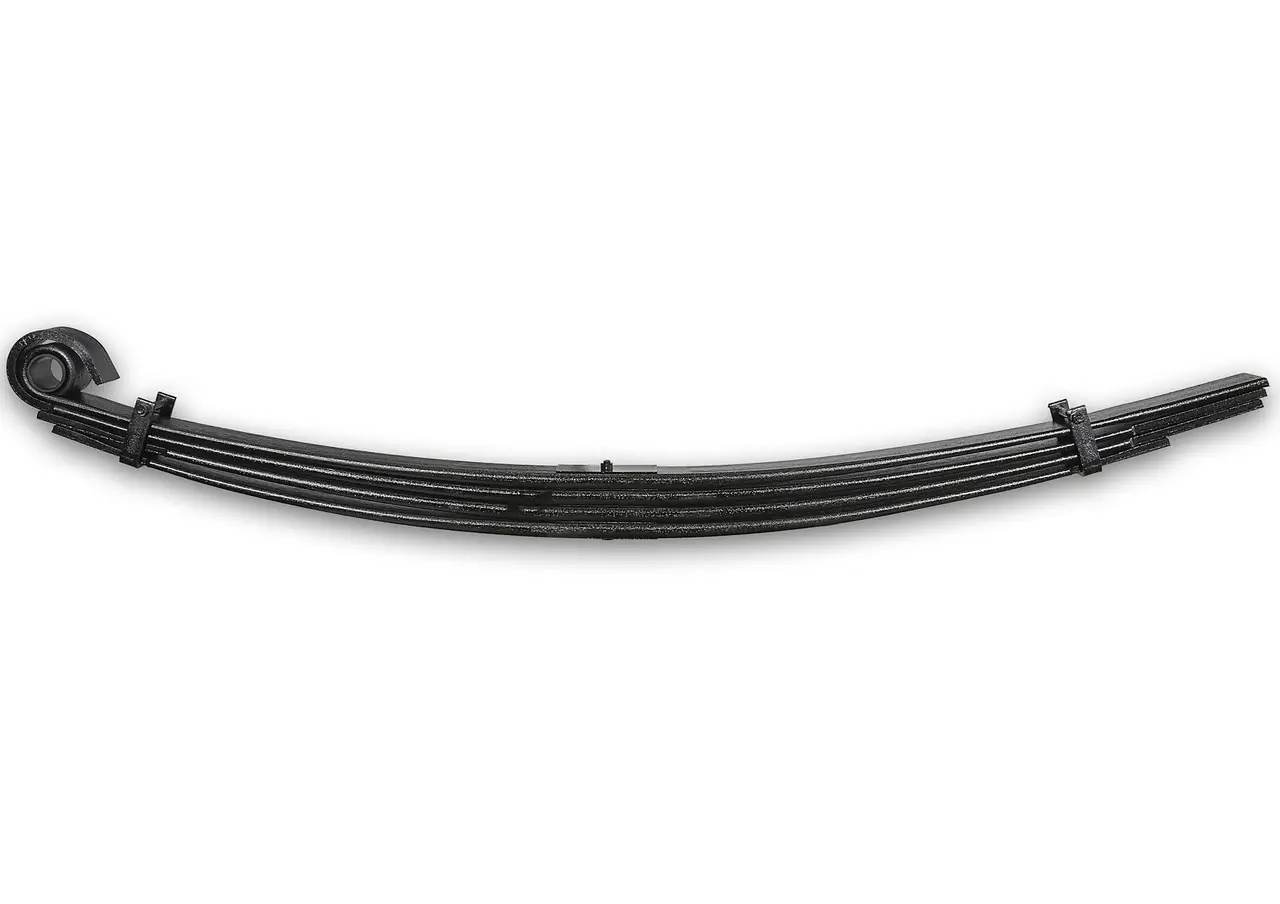

Rear 4-Leaf Spring for MAZ 5440 | Manufacturer in China

Back to Leaf Springs

Description

d50xd58x90
Eye dia 57.5

Accessories

Yes

Material

SUP7

SUP9

50CrV

51CrV4

Add to cart

Available

Min. 50 pcs

Lead time 90 days

Placement

Rear

Type

Parabolic

Length (mm)

900-1030

Section (mm)

90*4/24

Arc height (mm)

140

Weight (kg)

102.6000

Max Load (tons)

Comment

Part No	Type	Weight (kg)	Length (mm)	Section (mm)
NS41.006.01	Parabolic	29.0000	2180	90*24	Available
NS41.006.02	Parabolic	28.3000	1754	90*24	Available
NS41.006.03	Parabolic	25.5000	1940	90*24	Available
NS41.006.04	Parabolic	23.3000	1720	90*24	Available

NS41.006.01 Leaf Spring for MAZ 5440

Comment

Length (mm)

2180

Type

Parabolic

Section (mm)

90*24

Weight (kg)

29.0000

Available

NS41.006.02 Leaf Spring for MAZ 5440

Comment

Length (mm)

1754

Type

Parabolic

Section (mm)

90*24

Weight (kg)

28.3000

Available

NS41.006.03 Leaf Spring for MAZ 5440

Comment

Length (mm)

1940

Type

Parabolic

Section (mm)

90*24

Weight (kg)

25.5000

Available

NS41.006.04 Leaf Spring for MAZ 5440

Comment

Length (mm)

1720

Type

Parabolic

Section (mm)

90*24

Weight (kg)

23.3000

Available

NS41.006.00 Leaf Spring for MAZ 5440

NS41.006.00 Leaf Spring for MAZ 5440
