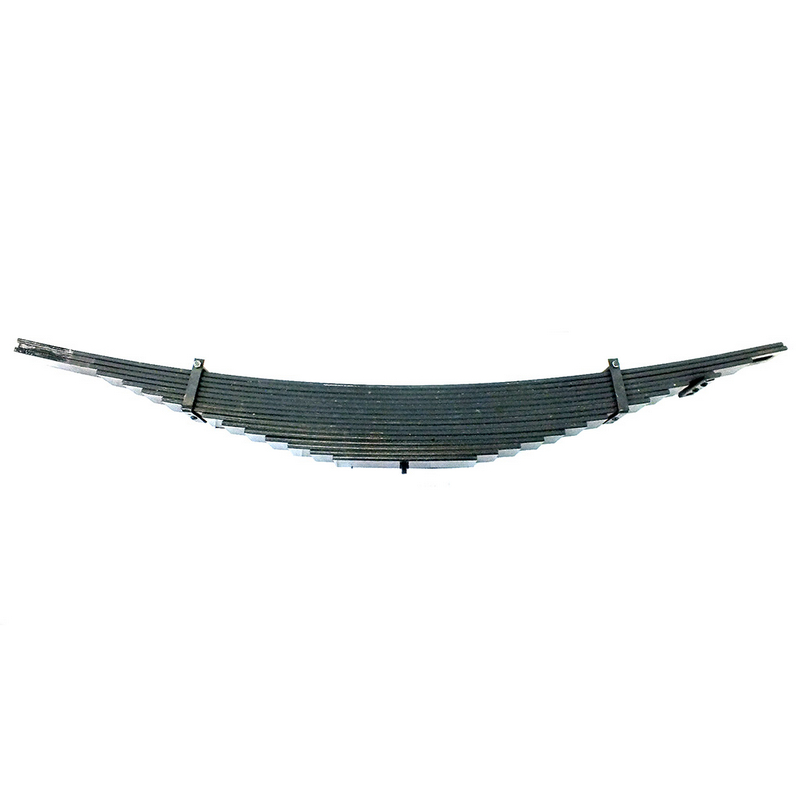

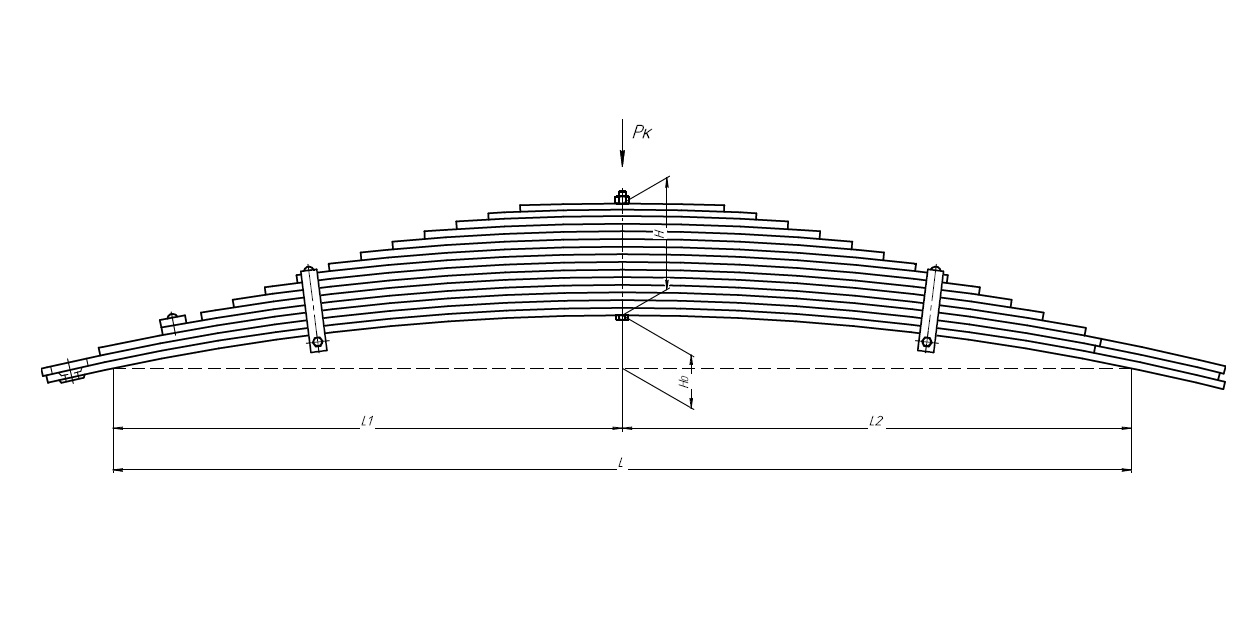

NS41.022.00 Leaf Spring for MAZ 509, 5337, 5432

alt
alt
alt
alt
Description

NS41.022.00 Leaf Spring for MAZ 509, 5337, 5432

Accessories
Material
$171.95
Add to cart
Available
Min. 50 pcs
Lead time 90 days
Placement
Rear
Type
Conventional
Length (mm)
800-800
Section (mm)
90*15/12
Arc height (mm)
176
Weight (kg)
138.8000
Max Load (tons)
2,75
Comment
Part No Comment Type Weight (kg) Length (mm) Section (mm) Price
NS41.022.01
Conventional 15.5700 1838 90*12
Available
$20.23
NS41.022.02
Conventional 15.4100 1838 90*12
Available
$20.02
NS41.022.03
Conventional 14.6000 1730 90*12
Available
$18.98
NS41.022.04
Conventional 12.1000 1430 90*12
Available
$15.72
NS41.022.05
Conventional 11.1000 1320 90*12
Available
$13.02
NS41.022.06
Conventional 10.3000 1220 90*12
Available
$12.09
NS41.022.07
Conventional 9.7000 1150 90*12
Available
$12.49
NS41.022.08
Conventional 9.0000 1070 90*12
Available
$11.59
NS41.022.09
Conventional 8.3000 990 90*12
Available
$10.70
NS41.022.10
Conventional 7.3000 870 90*12
Available
$9.41
NS41.022.11
Conventional 6.3000 750 90*12
Available
$8.12
NS41.022.12
Conventional 5.3000 630 90*12
Available
$6.83
NS41.022.13
Conventional 4.3000 510 90*12
Available
$5.54
NS41.022.14
Conventional 3.3000 390 90*12
Available
$4.26
NS41.022.15
Conventional 2.3000 270 90*12
Available
$2.97
NS41.022.01 Leaf Spring for MAZ 509, 5337, 5432
Comment
Length (mm)
1838
Type
Conventional
Section (mm)
90*12
Weight (kg)
15.5700
$20.23
Available
NS41.022.02 Leaf Spring for MAZ 509, 5337, 5432
Comment
Length (mm)
1838
Type
Conventional
Section (mm)
90*12
Weight (kg)
15.4100
$20.02
Available
NS41.022.03 Leaf Spring for MAZ 509, 5337, 5432
Comment
Length (mm)
1730
Type
Conventional
Section (mm)
90*12
Weight (kg)
14.6000
$18.98
Available
NS41.022.04 Leaf Spring for MAZ 509, 5337, 5432
Comment
Length (mm)
1430
Type
Conventional
Section (mm)
90*12
Weight (kg)
12.1000
$15.72
Available
NS41.022.05 Leaf Spring for MAZ 509, 5337, 5432
Comment
Length (mm)
1320
Type
Conventional
Section (mm)
90*12
Weight (kg)
11.1000
$13.02
Available
NS41.022.06 Leaf Spring for MAZ 509, 5337, 5432
Comment
Length (mm)
1220
Type
Conventional
Section (mm)
90*12
Weight (kg)
10.3000
$12.09
Available
NS41.022.07 Leaf Spring for MAZ 509, 5337, 5432
Comment
Length (mm)
1150
Type
Conventional
Section (mm)
90*12
Weight (kg)
9.7000
$12.49
Available
NS41.022.08 Leaf Spring for MAZ 509, 5337, 5432
Comment
Length (mm)
1070
Type
Conventional
Section (mm)
90*12
Weight (kg)
9.0000
$11.59
Available
NS41.022.09 Leaf Spring for MAZ 509, 5337, 5432
Comment
Length (mm)
990
Type
Conventional
Section (mm)
90*12
Weight (kg)
8.3000
$10.70
Available
NS41.022.10 Leaf Spring for MAZ 509, 5337, 5432
Comment
Length (mm)
870
Type
Conventional
Section (mm)
90*12
Weight (kg)
7.3000
$9.41
Available
NS41.022.11 Leaf Spring for MAZ 509, 5337, 5432
Comment
Length (mm)
750
Type
Conventional
Section (mm)
90*12
Weight (kg)
6.3000
$8.12
Available
NS41.022.12 Leaf Spring for MAZ 509, 5337, 5432
Comment
Length (mm)
630
Type
Conventional
Section (mm)
90*12
Weight (kg)
5.3000
$6.83
Available
NS41.022.13 Leaf Spring for MAZ 509, 5337, 5432
Comment
Length (mm)
510
Type
Conventional
Section (mm)
90*12
Weight (kg)
4.3000
$5.54
Available
NS41.022.14 Leaf Spring for MAZ 509, 5337, 5432
Comment
Length (mm)
390
Type
Conventional
Section (mm)
90*12
Weight (kg)
3.3000
$4.26
Available
NS41.022.15 Leaf Spring for MAZ 509, 5337, 5432
Comment
Length (mm)
270
Type
Conventional
Section (mm)
90*12
Weight (kg)
2.3000
$2.97
Available
