Find parts that fit

We need more information about your vehicle to confirm fit.

Find parts that fit

We need more information about your vehicle to confirm fit.

Placement
Rear
Type
Parabolic
Length (mm)
662-593
OEM Codes
5827524/​5209038/​4583090/​2T145560GM/​2T145560ER/​2T145560EN/​2T145560EM/​2T145560EL/​2T145560EK/​2T145560EF/​2T145560DP/​2T145560DM/​2T145560CP/​1463289/​1463285/​1462180/​1342388/​1342385
Section (mm)
60*1/13+/1/11
Arc height (mm)
140
Leaves qty
2

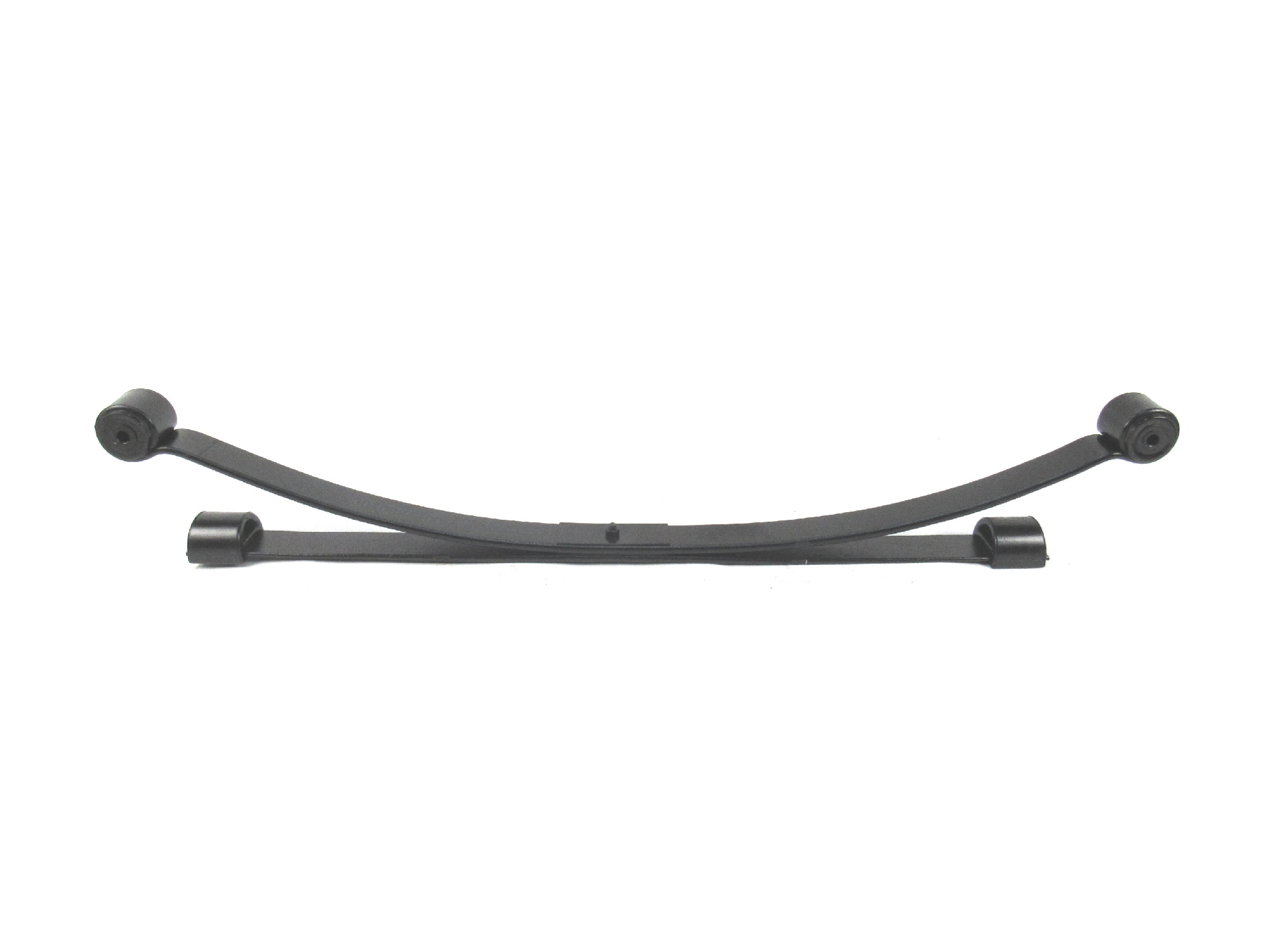

Aftermarket Codes
50705000/​011144800/​3010084-00
$21.89
Available
Placement
Rear
Type
Parabolic
Length (mm)
694-682
OEM Codes
BK315560EL/​BK315560EK/​BK315560EJ/​BK315560EH/​2362998/​2194930/​2030944/​1890299
Section (mm)
76*19
Arc height (mm)
144
Leaves qty
1
Aftermarket Codes
50717000/​011400800/​5827543/​3010295-00/​BK315560EC0019 Z/T
$20.04
Available
Placement
Rear
Type
Parabolic
Length (mm)
694-674
OEM Codes
6C115560BE/​6C115560BD/​6C115560BA/​6C115560BB/​6C115560BC/​1721779
Section (mm)
60*22
Arc height (mm)
88
Leaves qty
1

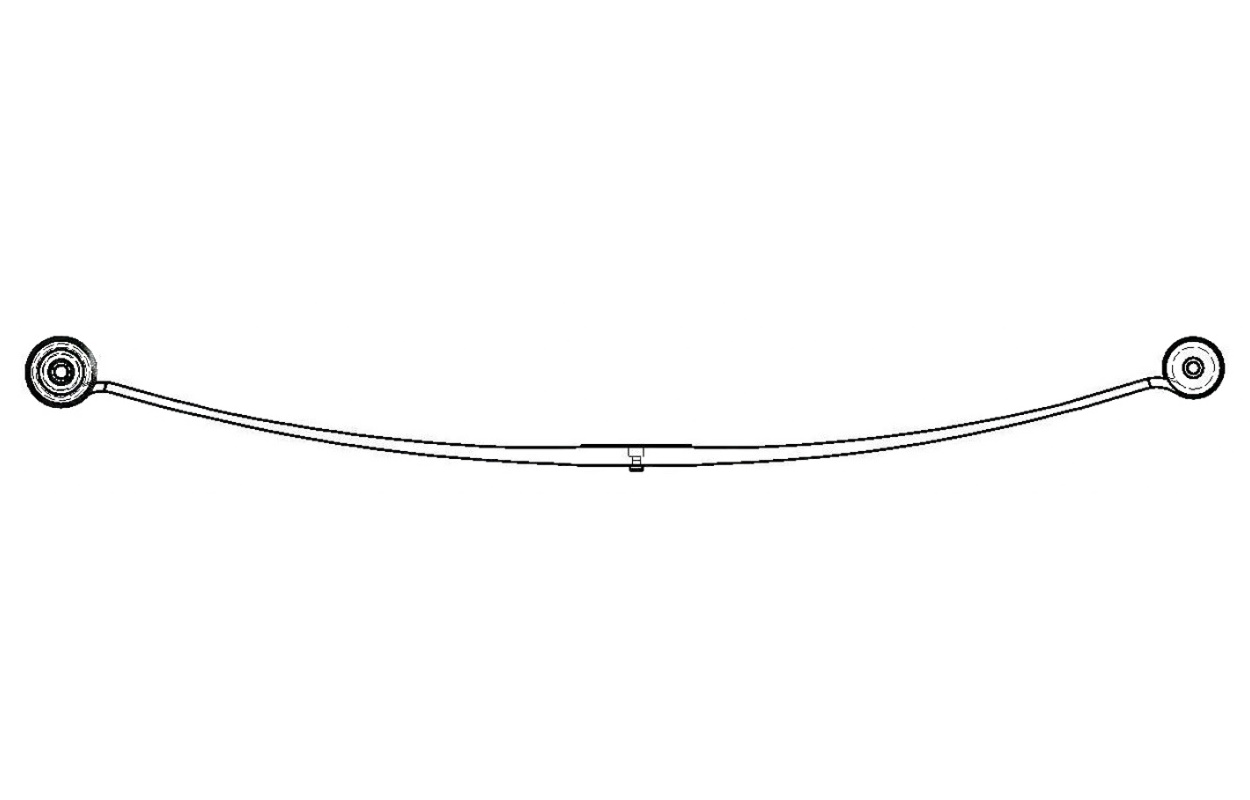

Aftermarket Codes
50611000/​F037T292ZA75/​011148800/​PS100.11.00/​5827529/​MLS-50611000/​3010240-00
$17.86
Available
Placement
Rear
Type
Parabolic
Length (mm)
694-674
OEM Codes
6C115560RE/​6C115560RD/​6C115560RC/​6C115560RB/​6C115560RA/​6C115560GD/​6C115560GC/​6C115560GB/​1721797/​1721784/​1684755/​1512411/​1481326/​1478218/​1478217/​1388233
Section (mm)
76*21
Arc height (mm)
133
Leaves qty
1
Aftermarket Codes
50619000/​F037T272ZA75/​10.200.910.00/​PS100.09.00/​011133800/​5827531/​MLS-50619000/​3010218-00/​3010218-01/​6C115560RB0019/​6C115560RB0019 Z/T
$23.38
Available
Placement
Rear
Type
Parabolic
Length (mm)
694-674
OEM Codes
6C115560JH/​6C115560JG/​6C115560JE/​6C115560JD/​6C115560JC/​6C115560JB/​6C115560JA/​6C115560FA/​6C115560 FE/​6C115560 FD/​6C115560 FC/​6C115560 FB/​6C11 5560 FC/​6C115560 FA/​1788920/​1788916/​1721792/​1721783/​1686728/​1684753/​1490997/​1388232
Section (mm)
76*2/18
Arc height (mm)
144
Leaves qty
2

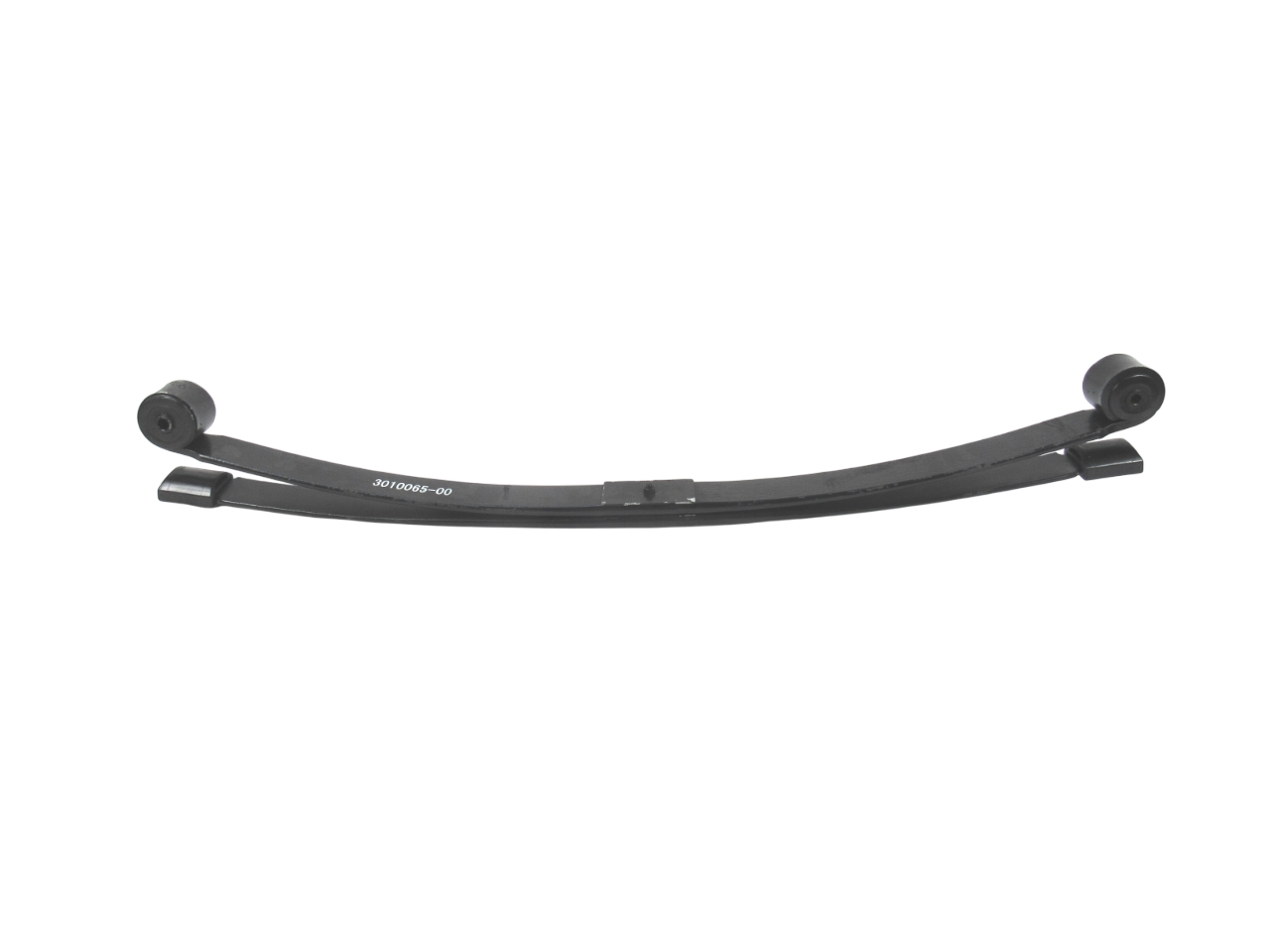

Aftermarket Codes
50651000/​F037T282ZA75/​011149800/​PS100.55.00/​5827530/​3010065-00/​6C115560FC0019 Z/T/​115560FC0019 Z/T
$37.24
Available
Placement
Rear
Type
Parabolic
Length (mm)
694-674
OEM Codes
6C115560UE/​6C115560UD/​6C115560UC/​6C115560UB/​6C115560UA/​6C115560HE/​6C115560HD/​6C115560 HF/​6C115560 HE/​6C115560 HD/​6C115560 HC/​6C115560 HB/​6C115560 HA/​1788917/​1721798/​1721790/​1686731/​1686726/​1512415/​1481327/​1388234
Section (mm)
76*1/15+1/16+1/21
Arc height (mm)
116
Leaves qty
3

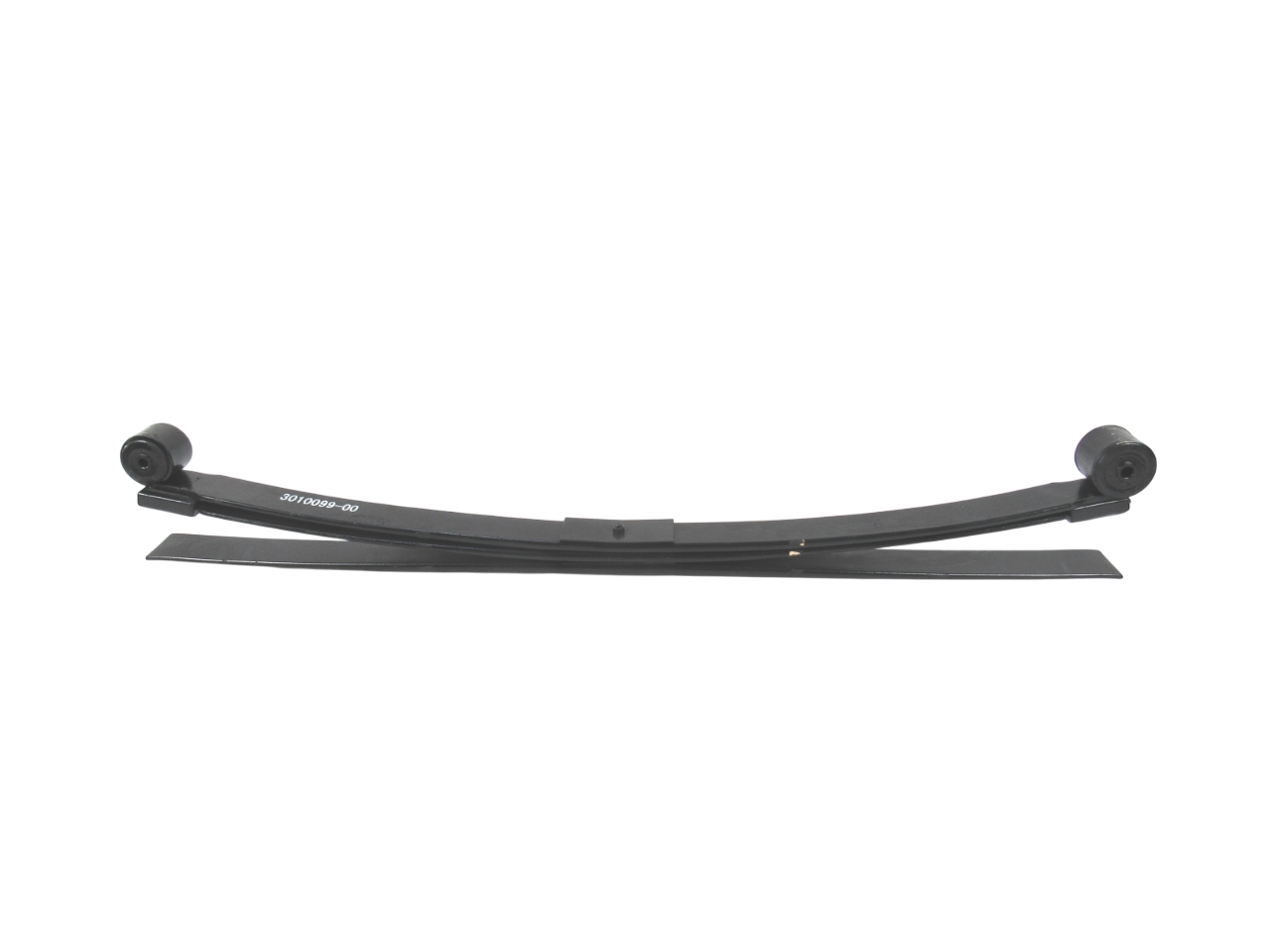

Aftermarket Codes
50627000/​011138800/​PS100.31.00/​5827532/​3010099-00/​6C115560HE0019 Z/T
$50.22
Available
Placement
Rear
Type
Parabolic
Length (mm)
698-672
OEM Codes
YC155560CC/​4187684/​4187683/​4187681/​4041498/​4 101 850/​4 101 849/​1C155560LE/​1C155560LD/​1C155560LC/​1C15 5560 JE/​1C15 5560 JD/​1C15 5560 DD/​1C15 5560 JC/​1C15 5560 EC/​1C15 5560 DC/​1C 15 5560 EE/​1C15 5560 CD/​1C15 5560 CC
Section (mm)
60*20
Arc height (mm)
120
Leaves qty
1
Aftermarket Codes
56503900/​56504200/​900555801/​10.565.042.00/​PS100.25.00/​5827536/​200410-LS/​3010185-00/​1C155560JE0019
$18.44
Available
Placement
Rear
Type
Parabolic
Length (mm)
694-674
OEM Codes
YC155560 HF/​YC155560 HD/​4494351/​4494339/​4377434/​4115136/​4095037/​2C115560KA/​2C115560JA
Section (mm)
60*2/19
Arc height (mm)
120
Leaves qty
2

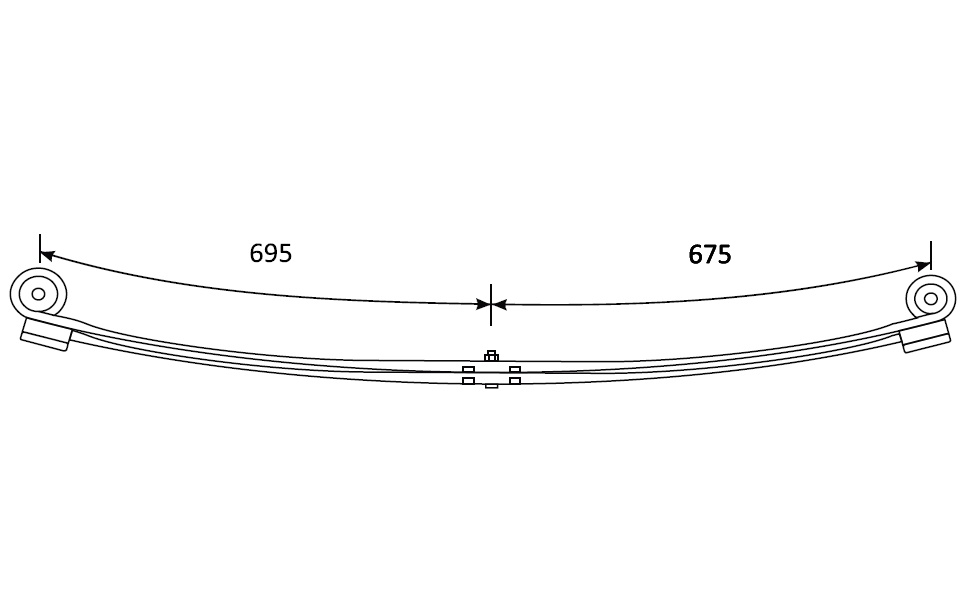

Aftermarket Codes
56504800/​011077800/​PS100.53.00/​61275180019
$30.00
Available
Placement
Rear
Type
Parabolic
Length (mm)
694-674
OEM Codes
YC155560HF/​YC155560HD/​YC155560GL/​4095037/​4377434/​4115136
Section (mm)
60*2/17
Arc height (mm)
105
Leaves qty
2
Aftermarket Codes
56504900/​1020047000/​PS100.01.00/​6127526
$26.59
Available
Placement
Rear
Type
Parabolic
Length (mm)
698-684
OEM Codes
Section (mm)
60*1/12+1/16+1/24
Arc height (mm)
120
Leaves qty
3

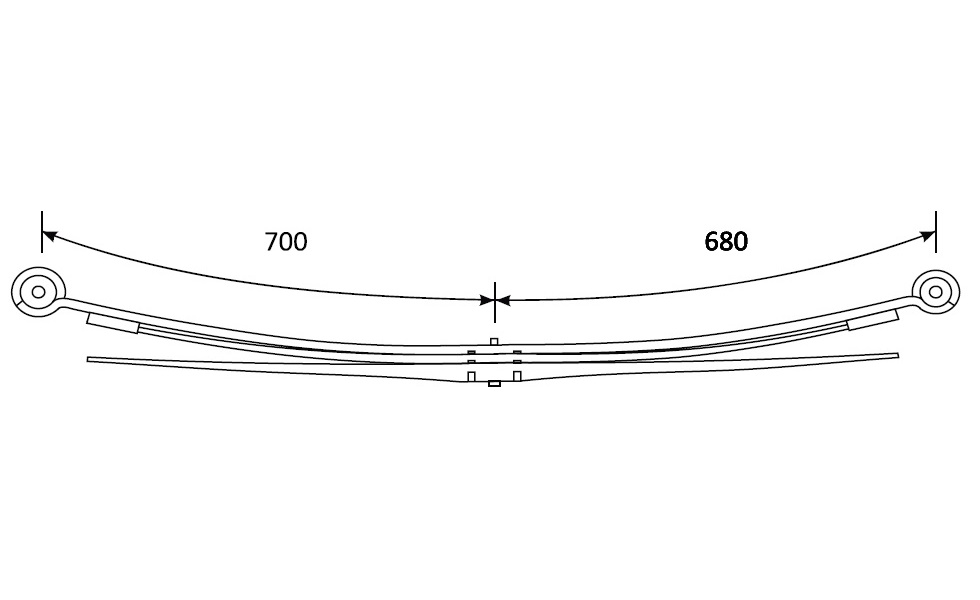

Aftermarket Codes
56503300/​5650330019
$37.45
Available
Placement
Rear
Type
Parabolic
Length (mm)
698-684
OEM Codes
Section (mm)
60*1/12+1/16+1/24
Arc height (mm)
135
Leaves qty
3
Aftermarket Codes
$37.45
Available
Placement
Rear
Type
Parabolic
Length (mm)
692-672
OEM Codes
Section (mm)
60*1/11+1/16+1/21
Arc height (mm)
96
Leaves qty
3
Aftermarket Codes
011143800
$36.67
Available
Placement
Rear
Type
Parabolic
Length (mm)
698-684
OEM Codes
Section (mm)
60*1/11+1/16+1/22
Arc height (mm)
140
Leaves qty
3
Aftermarket Codes
$35.15
Available
Placement
Rear
Type
Parabolic
Length (mm)
694-682
OEM Codes
Section (mm)
76*17
Arc height (mm)
164
Leaves qty
1
Aftermarket Codes
50609000/​011370800/​PS100.34.00
$22.51
Available
Placement
Rear
Type
Parabolic
Length (mm)
694-674
OEM Codes
6C115560ME/​6C115560MD/​6C115560MC/​6C115560AD/​6C115560AC/​1686729/​1721795/​1686710/​1482237/​1482228
Section (mm)
60*22
Arc height (mm)
78
Leaves qty
1

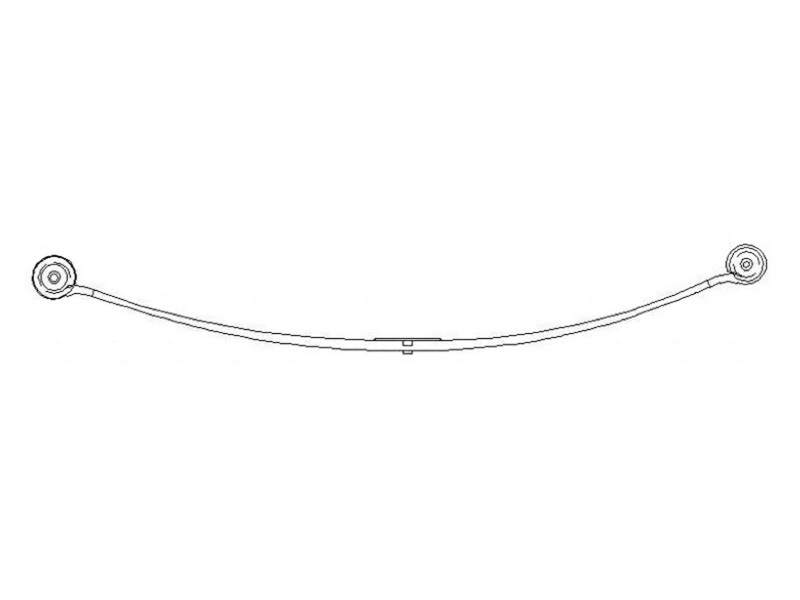

Aftermarket Codes
50641000/​10.565.222.00/​10.565.073.00/​5827528
$17.86
Available
Placement
Rear
Type
Parabolic
Length (mm)
694-682
OEM Codes
BK315560CJ/​BK315560CH/​BK315560CG/​BK315560CF/​BK315560CE/​BK315560CD/​BK315560CC/​2363008/​2030936
Section (mm)
76*19
Arc height (mm)
160
Leaves qty
1
Aftermarket Codes
011225800/​011225901/​5827544/​3010136-01/​BK315560CD0019 Z/T
$21.06
Available

Leaf springs are a critical suspension component for trucks, trailers, buses, and commercial vehicles operating under heavy and constant loads. NovaSpring manufactures high-quality leaf springs designed to deliver durability, load stability, and long service life in demanding operating conditions across Europe, the United States, and African markets.

Our leaf spring solutions are engineered for commercial and industrial applications, ensuring reliable performance for logistics fleets, construction equipment, agricultural machinery, and special-purpose vehicles. Each leaf spring is produced using carefully selected steel grades and controlled manufacturing processes to meet international quality and performance standards.

NovaSpring works with B2B partners, distributors, and fleet operators, offering OEM-compatible leaf springs tailored to specific vehicle requirements. Our production capabilities allow us to supply both standard and custom-designed leaf springs, supporting various axle loads, suspension configurations, and operating environments.

Designed to withstand intensive use, variable road conditions, and extreme climates, NovaSpring leaf springs help reduce downtime and maintenance costs for commercial vehicle operators. With a focus on consistency, reliability, and technical accuracy, we provide suspension solutions that support long-term operational efficiency and safety.

Frequently asked questions

  • Which steel grade is recommended for different leaf spring thicknesses?

    The optimal steel grade depends on the leaf thickness and the required performance. For leaves up to 20 mm thick, SUP9 provides an excellent balance of strength and cost-effectiveness. For thicknesses between 20 and 30 mm, 50CrVa is recommended due to its improved fatigue resistance and durability. For sections exceeding 30 mm, 51CrV4 is the preferred choice, offering superior strength and reliability for heavy-duty applications.
